Description
AquaHeat Propane or Natural Gas-Fired Heating System
The AquaHeat Aquaponic and Hydroponic water heating system was designed with reliability and ease-of-use in mind. The AquaHeat comes fully assembled, mounted, and tested.
How it Works:
When properly installed and operational, the AquaHeat will perform in the following manner.
- Propane or Natural Gas is supplied to the AquaHeat unit. (Unit must be properly connected to gas service and tested following instructions)
- Power is supplied to the digital thermostat controller
- The temperature drops below the set point, measured by the thermostat wire in your sump or fish tank
- The digital thermostat controller activates the DC circulation pump to move water through the heat loop (indicated with a mechanical pump sound)
- Water pressure activates gas flow (indicated with slight hissing sound)
- Water pressure also triggers the igniter which is powered by the D batteries (indicated by clicking sound)
- Gas ignites flame to start the burners and heat water
- Water is recirculated through the AquaHeat and the stainless steel heat exchanger (located in your sump or fish tank). The heat exchanger should always be submerged.
- Heat is exchanged between the heat exchange coil and the water in your aquaponic system.
- Once the temperature reaches the high temp set point, the thermostat turns off the DC circulation pump.
- This in turn shuts off the gas flow and allows the boiler to cool down.
- Once the thermostat detects the system water has cooled below the low set point, the process repeats.
System Features
- All AquaHeat systems come with a natural gas or propane hot water heater. The heater unit must be vented following the instructions provided with the unit.
- The entire heating system can be run off a car battery with the supplied 12 v battery cable

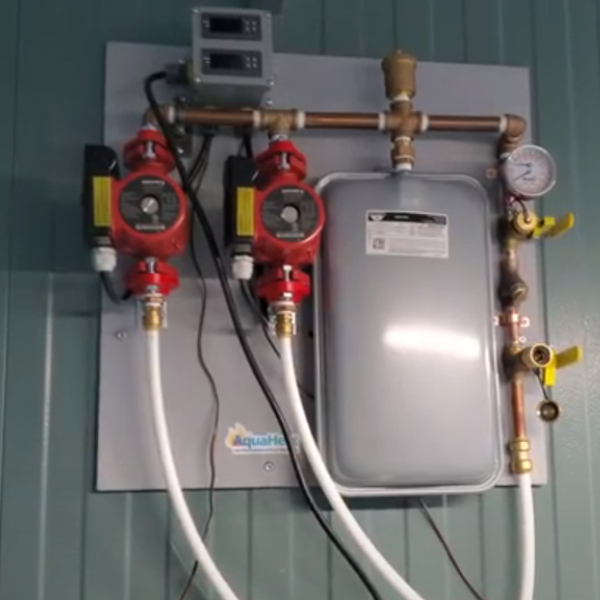

- DC circulation pump – used for circulating hot water through the stainless steel heat exchanger and the heater unit.
- Thermostat controller and sensor wire

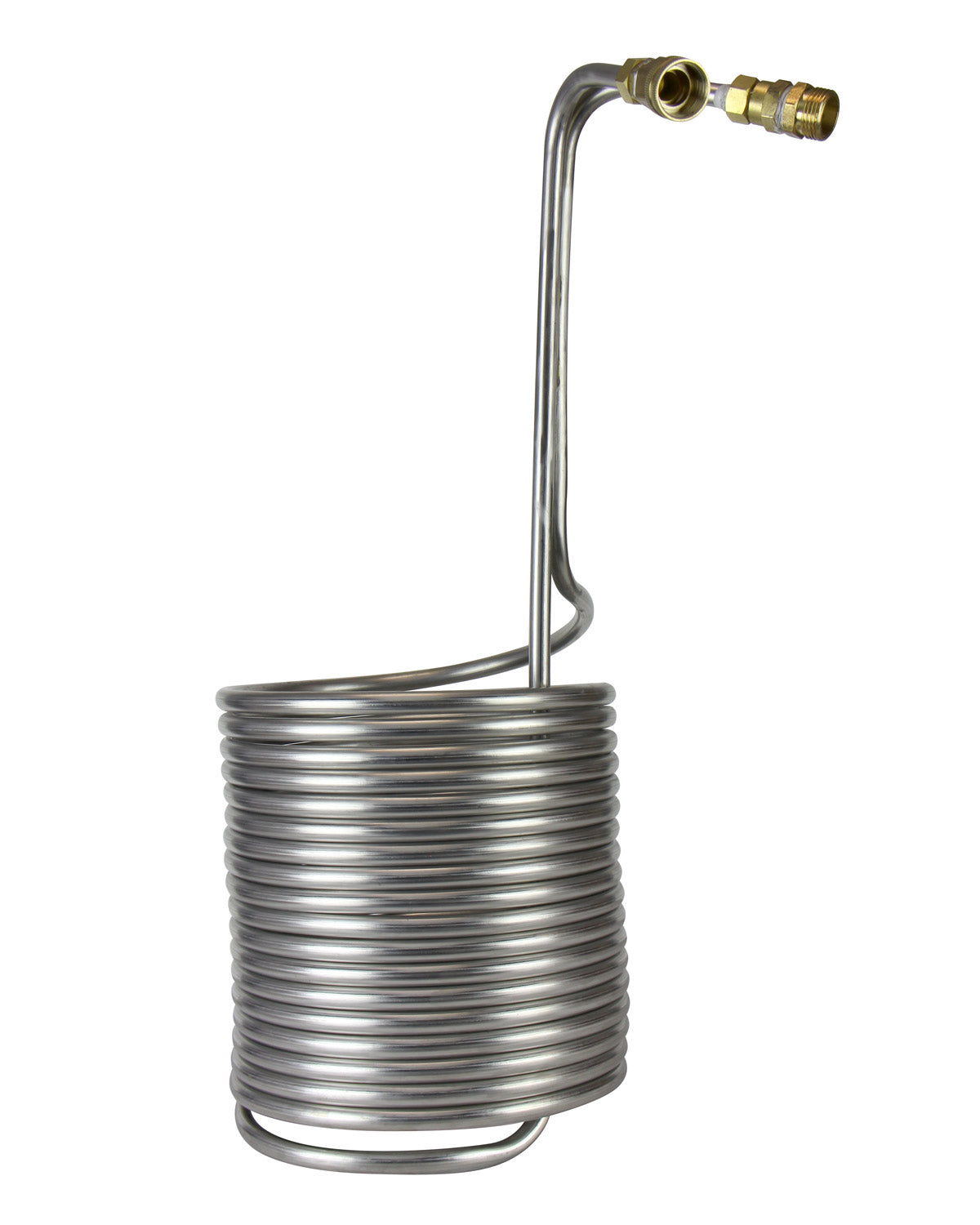

- 50′ Compact Stainless Steel Immersion Coil

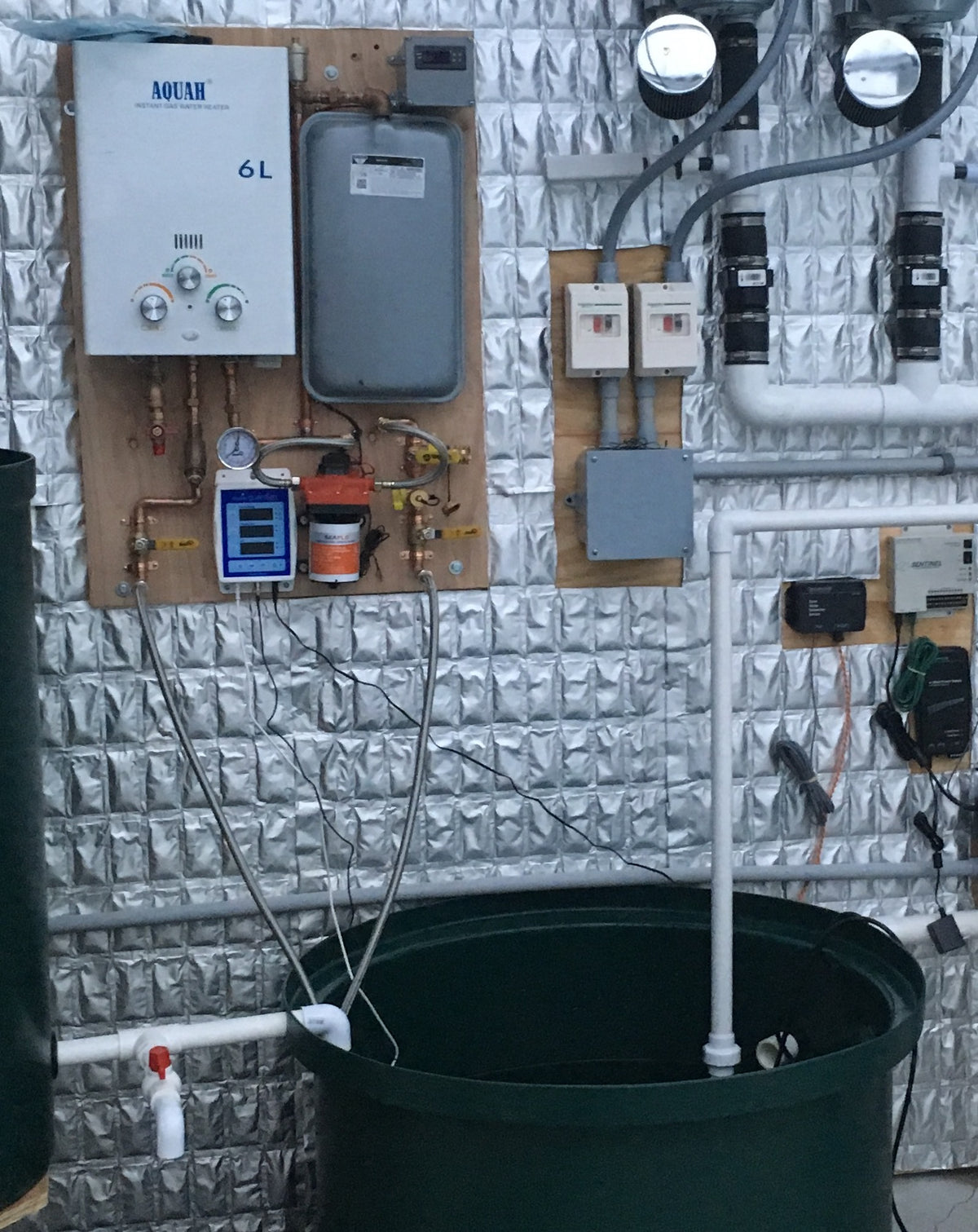

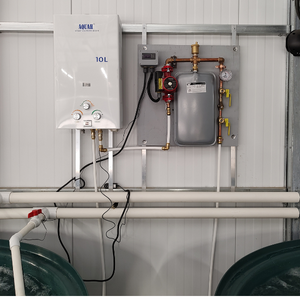

- Fully Mounted and plumbed on backer board
- Ready for hookup to gas service
Hot Water Heater Product Details Standard to All Systems
- Automatic Electrical Pulse Ignition with No Standing Pilot and No Electric Hookup Required (Operated by 2 Size-D Batteries, Not Included);
- IC Water Control Device;
- Ultra Low Water Pressure Start-up;
- Thermal Efficiency: >=85%;
- Gas Pressure: 2800Pa (0.41 psi)
- Exhaust Type: Duct;
- Gas and Water Inlet/Outlet: 1/2″;
- Winter/Summer control;
- Min/Max Water Flow Adjustment;
- Flame Adjustment for Temperature Setting
Safety Features Standard with All Systems
- Gas leak and overheating safety control;
- Flame failure safety device;
- Incomplete combustion safety device;
- Anti-dry combustion safety device;
- Over water pressure protection device;
- Auto cutoff protection in case of accident.
Specific Heater Specifications by Size
6L (1.6 GPM) Liquid Propane or Natural Gas Tankless Water Heater
- Thermal Output: 12,000 Watt / 40,900 Btu/h
- Temperature Rise: 45 degrees F at 1.6 GPM
- Minimum Working Water Pressure: 40 psi
- Dimensions: 17 1/4″ H x 12″ W x 5 1/2″ D
- Net Weight: 12 lb
- Requires Vent (3″ Double Wall Flue), Not Included.

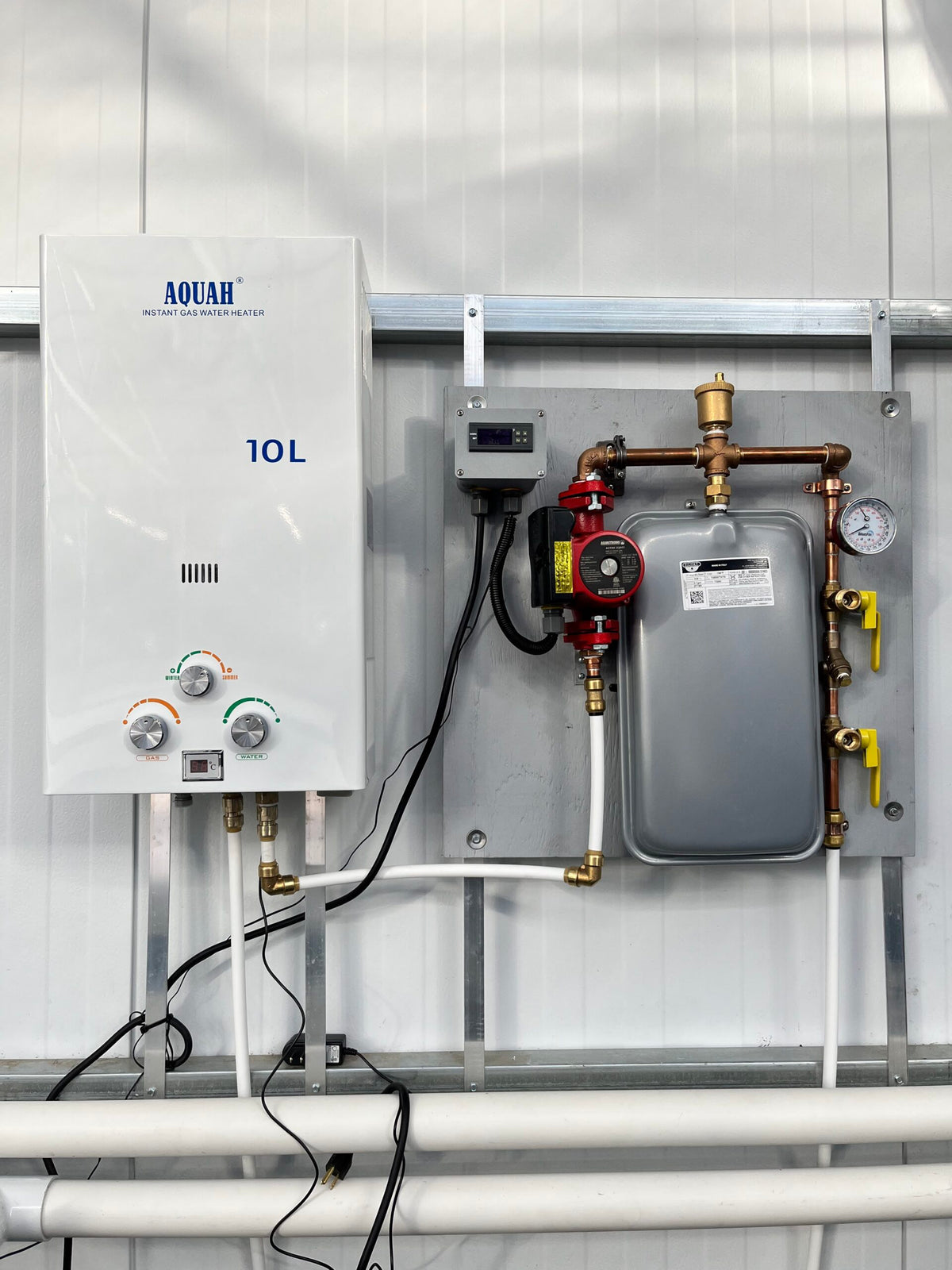

10L (2.65 GPM) Liquid Propane or Natural Gas Tankless Water Heater
- Thermal Output: 20,000 Watt / 68,242 Btu/h
- Temperature Rise: 45 degrees F at 2.65 GPM
- Minimum Working Water Pressure: 40 psi
- Dimensions: 23″ H x 13″ W x 7″ D
- Net Weight: 19 lb
- Requires Vent (4″ Double Wall Flue), Not Included.
16L (4.23 GPM) Liquid Propane or Natural Gas Tankless Water Heater
- Thermal Input: 32,000 Watt / 109,260 Btu/h
- Temperature Rise: 45 degrees F at 4.23 GPM
- Minimum Working Water Pressure: 45 psi
- Dimensions: 27″ H x 16 1/2″ W x 8″ D
- Net Weight: 30.20 lb
- Exhaust Pipe: 5″ double-wall type B vent pipes (not included)
Not Included
- 2 standard D-cell batteries
- 12V DC deep cycle marine battery
- Requires Vent (4″ Double Wall Flue), Not Included.
NOT for heating potable water.
