02575

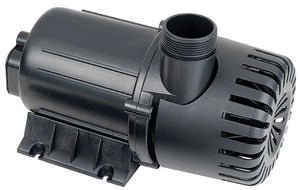

Danner Supreme HyDrive Magnetic Drive

Danner Supreme HyDrive Magnetic Drive pumps are rugged, powerful, energy-efficient pumps designed for freshwater aquaculture operations that need high flow at a low operating cost. Each pump includes a corrosion- and water-resistant 316 stainless steel rotor and a full set of fittings.

Features

  • Hybrid magnetic/direct drive motor with a high-efficiency vortex impeller and ceramic impeller shaft and bearings for energy savings at high output.
  • Submersible or in-line use, indoors or outdoors. When used in-line, place the pump below the water level; it is not self-priming. Never run dry.
  • Quiet, continuous-duty operation.
  • Fish-safe: no oil is used.
  • Integrated filter screen for clog-resistant operation; the rotor assembly is removable for simple cleaning.
  • Built-in overload protection via a self-resetting thermal overload switch.
  • 20' power cord with grounded plug and a base plate included.
  • 3-year warranty.

Specifications

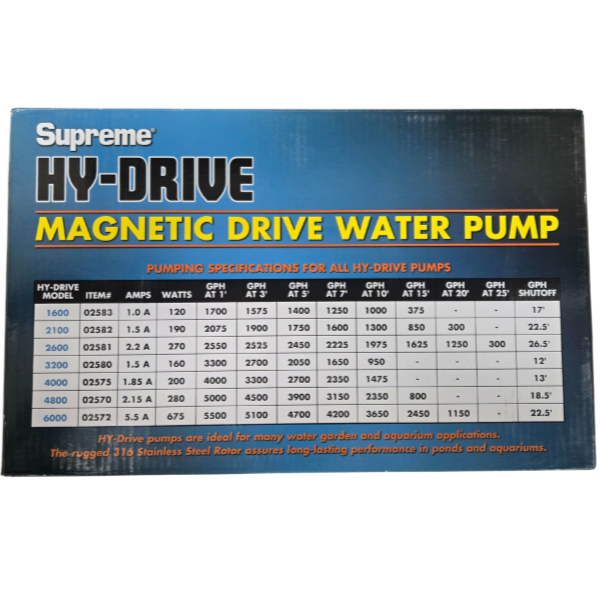

Model Flow at 1' Flow at 5' Flow at 10' Shutoff Head Amps Watts Inlet / Outlet
4000 4,000 GPH 2,700 GPH 1,475 GPH 13' 1.9 A 230 W 1.5" FPT / MPT
4800 5,000 GPH 3,900 GPH 2,350 GPH 18.5' 2.0 A 250 W 1.5" FPT / MPT
6000 5,500 GPH 4,700 GPH 3,400 GPH 22.5' 5.5 A 675 W 2" FPT / MPT
  • Voltage: 120V / 60Hz
  • Maximum water temperature: 95°F (35°C)
  • Inlet is female threaded; outlet is male threaded
